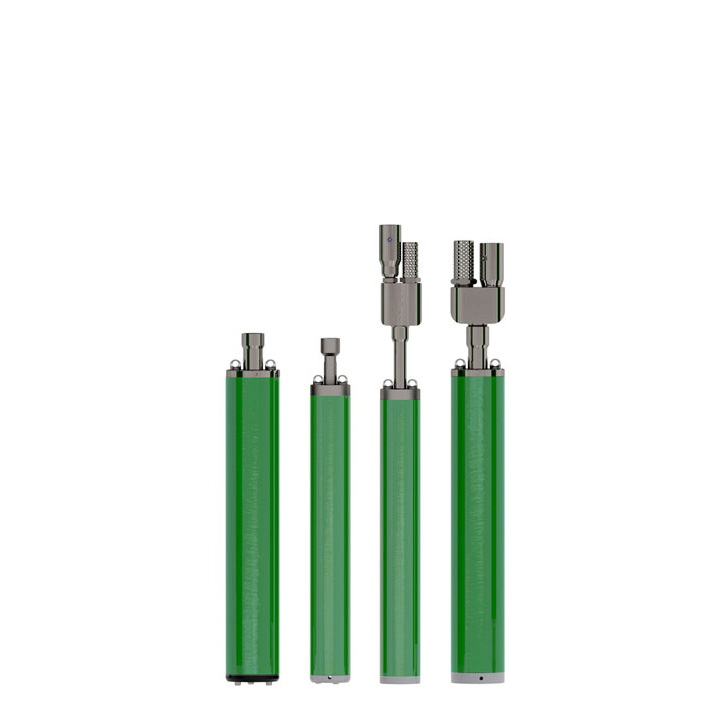

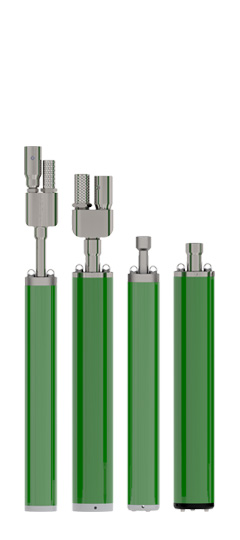

Low Draw Down Pneumatic Landfill Pumps

The bottom loader low draw down pump is ideal for use in boreholes when a lower level is required. The bottom loader fills from the bottom and discharges through the outlet at the top. The VP3-BL LDD and VP4-BL LDD are equipped with an inlet strainer that is flush with the base to reduce the overall pump height further.

The low draw down top loader fills from the top and discharges through the outlet at the top. It is ideal for use in groundwater applications for the removal of hydrocarbons. It is also ideal for use in landfill applications where the borehole is affected by excessive gas pressures. The TL LDD version allows a reduced well depth of liquid to be achieved.

The materials of construction have been selected for the harsh environment in which they are working, such as aggressive media, high-temperature and suspended solids.

Low Draw Down Pneumatic Environmental Pumps

4" and 3" Low Draw Down Pumps

Liquid Inlet PositionBottomTopBottomTop
Max Flow Rate: gpm\min>5.3>5.3>3.7>3.8
Volume\Cycle: Gallons0.
Pump Length : Inches21.729.126.232.7
Weight: lbs.9.412.17.07.7
Pump Diameter : in3.
Pump Trigger Point:in14.21314.213.9
Min Internal Well dia:in3.
Max Working Depth: feet426426426426
Max Operating Temp:°F212212212212
pH Operating Range1-121-121-121-12
