Top Loading Pneumatic Landfill Pumps

The top loader is a popular model in the VP Series. It fills from the top and discharges through the outlet at the top. It is ideal for use in groundwater applications for the removal of hydrocarbons. It is also ideal for use in landfill applications where the borehole is affected by excessive gas pressures.

The materials of construction have been selected for the harsh environment in which they are working, such as aggressive media, high-temperature and suspended solids.

Top Loading Pneumatic Environmental Pumps

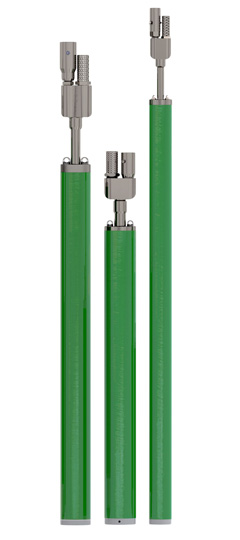

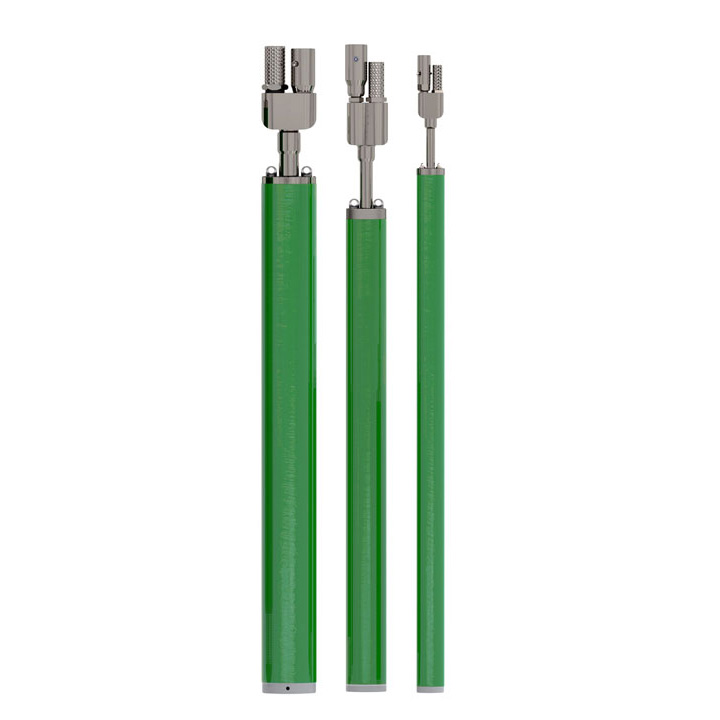

4", 3", and 2" Top Loading Pumps

Liquid Inlet PositionTopTopTop
Max Flow Rate: gpm\min>9.2>4.4>1.7
Volume\Cycle: Gallons0.30.20.07
Pump Length : Inches43.346.939.1
Weight: lbs.17.615.84.4
Pump Diameter : in3.52.81.7
Pump Trigger Point:in24.424.823.4
Min Internal Well dia:in3.93.12.4
Max Working Depth: feet426426426
Max Operating Temp:°F212212212
pH Operating Range1-121-121-12
