Home | Pumps

The VP range is a cost effective, ATEX certified, reliable, automatic and long lasting solution to leachate, condensate and contaminated water control problems.

VP pumps are fully automatic, self-regulating and require no external form of control.

The VP Series includes pumps to suit most requirements: 4 Inch, 3 Inch, and 2 Inch models, in both top or bottom loading designs, and low draw down models for those situations where you are trying to achieve as low a depth as possible.

4 Inch ModelsVP4-BLVP4-TLVP4-BL LDDVP4-TL LDD
Liquid Inlet PositionBottomTopBottomTop
Max Flow Rate: gpm\min>12.7>9.2>5.3>5.3
Volume\Cycle: Gallons0.30.30.150.1
Pump Length : Inches40.643.321.729.1
Weight: lbs.13.217.69.412.1
Pump Diameter : in3.53.53.53.5
Pump Trigger Point:in26.441.714.213
Min Internal Well dia:in3.93.93.93.9
Max Working Depth: feet426426426426
Max Operating Temp:°F212212212212
pH Operating Range1-121-121-121-12

3 Inch ModelsVP3-BLVP3-TLVP3-BL LDD
Liquid Inlet PositionBottomTopBottom
Max Flow Rate: gpm\min>5.3>4.4>3.7
Volume\Cycle: Gallons0.150.20.1
Pump Length : Inches44.146.926.2
Weight: lbs.9.415.87.0
Pump Diameter : in2.82.82.8
Pump Trigger Point:in29.342.914.2
Min Internal Well dia:in3.13.13.1
Max Working Depth: feet426426426
Max Operating Temp:°F212212212
pH Operating Range1-121-121-12

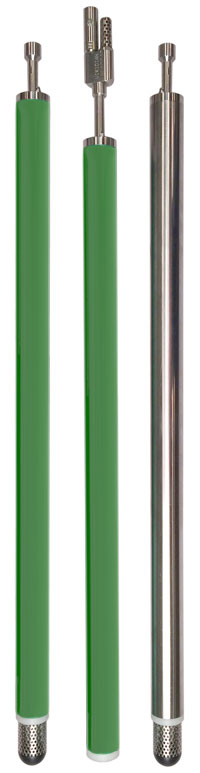

2 Inch ModelsVP2-BLVP2-TLVP2-BL SS
Liquid Inlet PositionBottomTopBottom
Max Flow Rate: gpm\min>2.0>1.7>2.0
Volume\Cycle: Gallons0.080.070.08
Pump Length : Inches37.239.137.2
Weight: lbs.3.34.46.9
Pump Diameter : in1.71.71.7
Pump Trigger Point:in25.523.425.5
Min Internal Well dia:in2.42.42.4
Max Working Depth: feet426426426
Max Operating Temp:°F212212212
pH Operating Range1-121-121-12

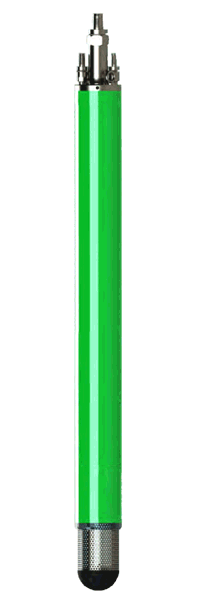

VP4 Specifications

VP Pump Advantages:

  • Outer casing is more resilient to harsh environments than comparable pumps on the market.
  • Unlike similar pumps, the rocker arm design does not allow for air infiltration, which can reduce pump efficiency and cause the pump to stall or airlock.
  • Adjustable magnets within the rocker arm assembly allow for precise adjustment.
  • The VP4's float material is more chemical resistant and withstands water penetration, retaining its density thus retaining its performance.
